Graiseley Hill Works
Frames, Forks,
Mudguards, Wheels and Saddles
 |

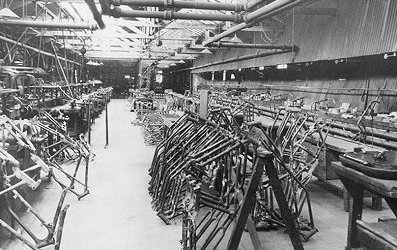

The frame building department in 1927.
On the left are frame building clamps, and on the right is
the gas welding equipment.
|
|

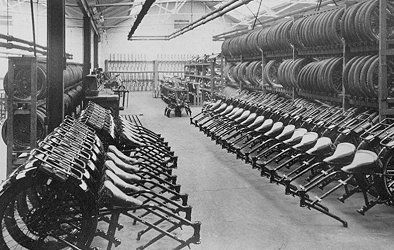

Frame, carrier and saddle assembling shop in
1927. |
 |
 |

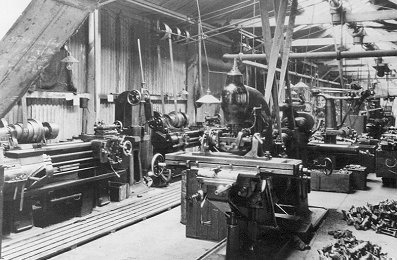

The frame machine shop.
In the centre is a drilling machine and on the left are two
capstan lathes.
|

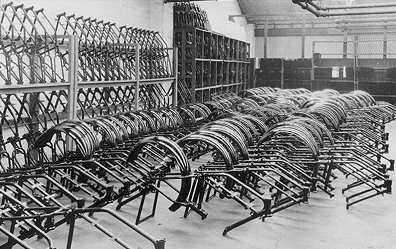

| Frame and mudguard department. |
 |
 |

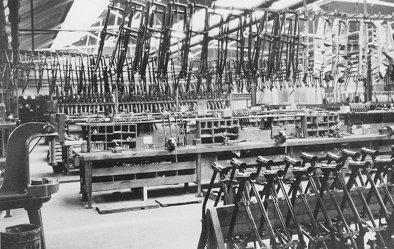

The fork assembly shop in 1927. |

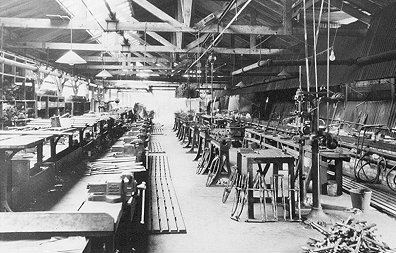

| Fork building department. |
 |
 |

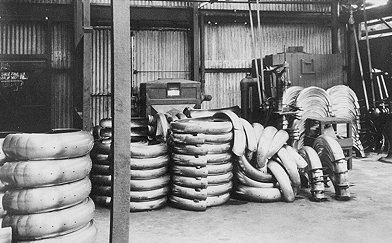

The mudguard building shop.
The mudguards on the right are stacked up in readiness for
drilling the various holes in them. The drilling machine in the
background is belt driven from the overhead line shafting.
|

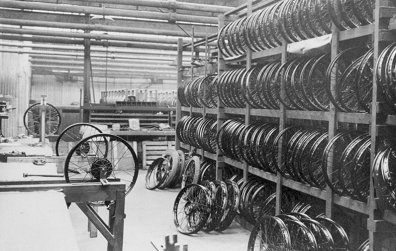

| The wheel and brake department in 1927.
The wheels on the left are mounted so that they can be spun
for balancing.
|
 |
 |
|
 |
|
 |
